10kV S13 Series Oil-immersed Transformers require detailed communication to accurately understand the specific needs of customers. Each customer's needs are different, which may include requirements for power load, working environment, installation space, and other aspects.

Therefore, manufacturers need to have in-depth communication with customers to clarify their usage scenarios, technical parameters, size requirements, etc., in order to provide customized solutions. In this way, manufacturers can ensure that every customized power transformer can meet the actual usage needs of customers very well.

After meeting the basic needs of customers, electric vehicles can further enhance customized services by providing diversified product options. For example, customers may require transformers of different capacities, voltage levels, shapes, or other materials.

Through diversified configuration options, manufacturers can not only meet customers' basic technical requirements, but also ensure the service life, efficiency, and stability of voltage transformer, thereby enhancing customers' user experience.

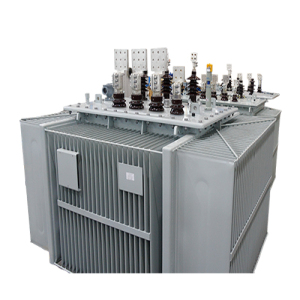

10kV S13 Series oil-immersed transformers: Features, Applications, and Advantages

The 10kV S13 series oil-immersed transformers are widely used in power distribution systems due to their high efficiency, reliability, and cost-effectiveness. These transformers are designed to step down voltage from 10kV to lower levels suitable for industrial, commercial, and residential applications. With advancements in materials and manufacturing techniques, the S13 series offers improved performance compared to older models like the S9 and S11 series. This article explores the key features, technical specifications, applications, and benefits of 10kV S13 oil-immersed transformers.

1. Key Features of 10kV S13 Oil-immersed Transformers

1.1 High Efficiency and Energy Savings

The S13 series is designed with high-quality silicon steel cores and optimized winding structures to minimize no-load and load losses. These transformers meet or exceed international energy efficiency standards, such as the IEC 60076, ensuring reduced energy consumption and lower operational costs over their lifespan.

1.2 Advanced Cooling System

Oil-immersed transformers rely on mineral oil for insulation and cooling. The S13 series incorporates an efficient heat dissipation system, including radiators and cooling fins, to maintain optimal operating temperatures even under heavy loads. This enhances durability and prevents overheating.

1.3 Robust Construction

The S13 transformers feature a sturdy tank made of corrosion-resistant steel, ensuring long-term performance in harsh environments. The oil-filled design provides excellent insulation and protection against electrical faults.

1.4 Low Noise Operation

Advanced core materials and vibration-dampening designs reduce noise levels, making the S13 series suitable for installations in urban areas or near residential buildings.

1.5 Environmental Considerations

While oil-immersed transformers use mineral oil, modern designs include measures to prevent leaks and contamination. Some variants use biodegradable oils for improved environmental safety.

2. Technical Specifications

2.1 Voltage Ratings

Primary Voltage: 10kV (±5% or ±2×2.5% adjustable taps)

Secondary Voltage: 400V, 230V, or other customized levels

2.2 Capacity Range

Standard capacities range from 30kVA to 2500kVA, catering to diverse power distribution needs.

2.3 Insulation and Dielectric Strength

High-voltage winding: Impulse withstand voltage of 75kV

Low-voltage winding: Impulse withstand voltage of 20kV

2.4 Efficiency Standards

Compliant with GB/T 25446-2010 (China) and IEC 60076

No-load loss and load loss values are significantly lower than S9/S11 models.

2.5 Temperature Rise Limits

Average winding temperature rise: ≤65K

Top oil temperature rise: ≤55K

3. Applications of 10kV S13 Oil-immersed Transformers

3.1 Power Distribution Networks

The S13 series is commonly used in substations to step down 10kV distribution voltage to 400V for industrial and commercial facilities.

3.2 Renewable Energy Integration

These transformers are employed in solar and wind farms to connect distributed generation systems to the grid.

3.3 Industrial Plants

Factories with high power demands rely on S13 transformers for stable voltage regulation and reduced energy losses.

3.4 Urban and Rural Electrification

Due to their reliability, S13 transformers are deployed in both densely populated cities and remote rural areas.

3.5 Mining and Oil & Gas Industries

Robust construction makes them suitable for harsh environments with dust, humidity, or explosive atmospheres (with proper enclosures).

4. Advantages Over Other Transformer Types

4.1 Compared to dry-type transformers

Lower Cost: Oil-immersed transformers are more economical for high-capacity applications.

Better Heat Dissipation: Oil cooling allows for higher overload capacity.

Longer Lifespan: Proper maintenance can extend service life beyond 25 years.

4.2 Compared to Older Oil-immersed Models (S9/S11)

Higher Efficiency: S13 transformers reduce no-load losses by 20-30% compared to S11.

Improved Safety: Enhanced leak prevention and fire-resistant designs.

Smaller Footprint: Compact design saves installation space.

5. Maintenance and Safety Considerations

5.1 Routine Inspections

Regular oil testing (dielectric strength, moisture content).

Checking for leaks, corrosion, or loose connections.

5.2 Safety Measures

Fire protection systems (e.g., oil containment pits).

Proper grounding and lightning protection.

5.3 Environmental Compliance

Disposal of oil must follow local regulations to prevent pollution.

6. Future Trends and Innovations

Smart Transformers: Integration with IoT for real-time monitoring.

Eco-friendly Oils: Adoption of synthetic or natural ester oils.

Modular Designs: Easier installation and scalability.

The 10kV S13 series oil-immersed transformers represent a balance of efficiency, durability, and cost-effectiveness for modern power distribution. Their advanced design and wide applicability make them a preferred choice across industries. As technology evolves, future iterations will likely focus on sustainability and smart grid compatibility, further enhancing their role in energy systems.
