The installation foundation of 10kV SC (B) H15, H17, H19 Series  Amorphous Alloy dry-type transformers is the key to their stable operation. The foundation construction needs to be carried out first, usually using concrete foundation. The size and strength of the foundation should be designed according to the model and weight of the transformer to ensure the stability and load-bearing capacity of the foundation. After the foundation pouring is completed, it is necessary to wait for a curing period of some time to ensure that the concrete foundation reaches sufficient strength.

Before installing an Dry-type power transformers, it needs to be transported from the transport vehicle to the designated location. During the transportation process, it is important to handle with care to avoid damage to the transformer casing. When in place, use equipment such as cranes to accurately place the transformer on the foundation. Ensure that the Electronic Transformer is placed steadily to avoid any impact on its normal operation caused by tilting or uneven force.

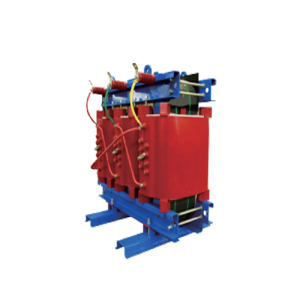

10kV SC (B) H15, H17, H19 Series Amorphous Alloy Dry-type Transformers: A Comprehensive Overview

Introduction

The 10kV SC (B) H15, H17, H19 series amorphous alloy dry-type transformers represent a significant advancement in power distribution technology. These transformers are designed to meet the growing demand for energy-efficient, environmentally friendly, and high-performance electrical solutions. With their unique amorphous alloy cores, they offer superior energy savings, reduced no-load losses, and enhanced operational reliability compared to traditional silicon steel transformers.

This article explores the key features, technical specifications, advantages, and applications of the 10kV SC (B) H15, H17, H19 series amorphous alloy dry-type transformers, providing a detailed understanding of their role in modern power systems.

1. What Are Amorphous Alloy Dry-Type Transformers?

Amorphous alloy dry-type transformers utilize a core made from amorphous metal, a non-crystalline alloy with a disordered atomic structure. This material exhibits significantly lower hysteresis and eddy current losses compared to conventional grain-oriented silicon steel, making it ideal for energy-efficient transformer designs.

The 10kV SC (B) H15, H17, H19 series refers to a specific line of amorphous alloy transformers rated for 10kV applications, featuring different loss levels (H15, H17, H19) to suit varying efficiency requirements.

2. Key Features of the 10kV SC (B) H15, H17, H19 Series

2.1 High Energy Efficiency

Amorphous alloy core reduces no-load losses by up to 70-80% compared to traditional transformers.

Compliant with international efficiency standards such as IEC 60076 and IEEE C57.12.01.

The H15, H17, H19 designations indicate progressively lower loss levels, with H15 being the most efficient.

2.2 Environmentally Friendly

Dry-type construction eliminates the need for oil, reducing fire hazards and environmental contamination.

Amorphous alloy is recyclable, supporting sustainable energy practices.

2.3 Low Noise and Vibration

The unique core material minimizes magnetostriction, resulting in quieter operation (<55 dB).

2.4 High Thermal Stability

Designed to operate in harsh environments with temperature ranges from -25°C to +40°C.

Class F or H insulation ensures long-term reliability.

2.5 Compact and Lightweight

Amorphous alloy cores are thinner and lighter than silicon steel, reducing overall transformer weight and footprint.

3. Advantages Over Conventional Transformers

3.1 Significant Energy Savings

The amorphous core’s low hysteresis loss translates to lower electricity consumption, especially in applications with long idle periods (e.g., commercial buildings, data centers).

3.2 Reduced Carbon Footprint

Lower energy losses mean fewer greenhouse gas emissions from power plants.

3.3 Longer Lifespan

Reduced thermal stress and improved material durability extend operational life beyond 30 years.

3.4 Enhanced Safety

No flammable oil eliminates fire risks, making them ideal for indoor installations (hospitals, schools, metro systems).

3.5 Lower Maintenance Costs

Dry-type design requires no oil testing or filtration, reducing long-term upkeep expenses.

4. Applications of 10kV SC (B) H15, H17, H19 Series Transformers

4.1 Renewable Energy Systems

Ideal for solar and wind farms, where energy efficiency is critical.

4.2 Industrial Facilities

Used in manufacturing plants, mining operations, and oil refineries due to their rugged design.

4.3 Urban Power Distribution

Deployed in smart grids, substations, and commercial complexes to enhance grid efficiency.

4.4 Data Centers

High efficiency and reliability make them suitable for mission-critical IT infrastructure.

4.5 Public Infrastructure

Hospitals, airports, and metro systems benefit from their silent, fire-safe operation.

5. Future Trends and Developments

As global energy regulations tighten, amorphous alloy transformers are expected to dominate the market. Future advancements may include:

Smart monitoring via IoT sensors for predictive maintenance.

Hybrid designs combining amorphous and nanocrystalline materials for even greater efficiency.

Wider adoption in developing nations to support electrification projects.

The 10kV SC (B) H15, H17, H19 series amorphous alloy dry-type transformers represent a leap forward in power distribution technology. Their unmatched efficiency, environmental benefits, and reliability make them a preferred choice for modern electrical networks. As industries and governments prioritize sustainability, these transformers will play a pivotal role in shaping the future of energy infrastructure.

By adopting amorphous alloy technology, businesses and utilities can achieve lower operational costs, reduced emissions, and enhanced grid stability, ensuring a greener and more efficient energy future.
