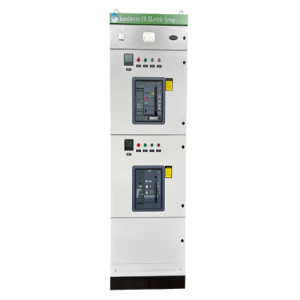

GCS type low-voltage withdrawable switchgear

GCS Low-Voltage Switchgear are modular devices designed specifically for low-voltage distribution systems, with pull-out drawer units as the core. They have the characteristics of flexible expansion, safety and reliability, and intelligent adaptation. Drawer style switchgear are widely used in various low-voltage power distribution and control scenarios.

Scope of Application

GCS type low-voltage Withdrawable switchgear are suitable for low-voltage distribution systems with three-phase AC 50/60Hz and rated voltage of 380V/400V/660V. The core application scenarios include:

1. Low voltage power distribution and centralized control of electric motors in power plants and substations

2. Load control centers for heavy industries such as petrochemicals, metallurgy, and steel rolling

3. Energy distribution and reactive power compensation system for commercial complexes and high-rise buildings

4. High automation distribution scenarios such as new energy stations and data centers

Technical Specifications

Rated voltage: 380V/400V (main circuit), 660V/690V (insulation voltage)

Rated frequency: 50/60Hz

Rated current: Horizontal busbar 100-4000A

Rated short-time withstand current (1s): 15-100kA

Protection level: Regular IP40

GCS Low-voltage switchgear: An Overview of Design, Applications, and Benefits

Introduction

Low-voltage switchgear plays a critical role in electrical power distribution systems, ensuring safe and efficient energy management. Among the various types of low-voltage switchgear, GCS Low-Voltage Switchgear stands out due to its advanced design, reliability, and adaptability across multiple industries. This article explores the key features, applications, and advantages of GCS Low-Voltage Switchgear, providing a comprehensive understanding of its significance in modern electrical infrastructure.

What is GCS Low-Voltage Switchgear?

GCS Low-Voltage Switchgear refers to a modular, withdrawable switchgear system designed for low-voltage power distribution (typically below 1000V). It is widely used in industrial, commercial, and utility applications to control, protect, and isolate electrical circuits. The system is known for its compact structure, high safety standards, and ease of maintenance.

Key components of GCS Low-Voltage Switchgear include:

1. Circuit Breakers – Provide overcurrent and short-circuit protection.

2. Busbars – Distribute power efficiently within the system.

3. Protection Relays – Monitor electrical parameters and trigger protective actions.

4. Control Devices – Enable remote or manual operation of the switchgear.

5. Enclosures – Ensure safety by preventing accidental contact with live parts.

Design and Construction Features

The design of GCS Low-Voltage Switchgear emphasizes safety, flexibility, and durability. Below are some notable features:

1. Modular and Withdrawable Design

The switchgear is built in a modular format, allowing easy expansion or reconfiguration.

Withdrawable units enable quick maintenance without shutting down the entire system.

2. High Short-Circuit Withstand Capacity

Engineered to handle high fault currents, ensuring system stability during electrical faults.

3. Advanced Protection Mechanisms

Integrated protection relays and circuit breakers prevent equipment damage from overloads or short circuits.

4. Compact and Space-Saving

Optimized for installations where space is limited, such as data centers or industrial plants.

5. Compliance with International Standards

Meets IEC 61439, GB 7251, and other relevant standards for safety and performance.

Applications of GCS Low-Voltage Switchgear

Due to its versatility, GCS Low-Voltage Switchgear is used in various sectors, including:

1. Industrial Facilities

Provides reliable power distribution in manufacturing plants, chemical industries, and mining operations.

Ensures uninterrupted operation of heavy machinery.

2. Commercial Buildings

Used in office complexes, shopping malls, and hospitals for safe power management.

3. Renewable Energy Systems

Integrates with solar and wind power installations for efficient energy distribution.

4. Data Centers

Supports critical IT infrastructure with high reliability and fault tolerance.

5. Utility and Infrastructure Projects

Deployed in substations and power distribution networks for grid stability.

Advantages of GCS Low-Voltage Switchgear

The widespread adoption of GCS Low-Voltage Switchgear can be attributed to several benefits:

1. Enhanced Safety

Robust enclosures and insulation materials minimize electrical hazards.

Arc-resistant designs protect personnel from arc flash incidents.

2. High Reliability

Built to withstand harsh environments, ensuring long-term performance.

3. Easy Maintenance

Withdrawable components simplify inspection and repairs.

4. Energy Efficiency

Low power loss design contributes to energy savings.

5. Scalability

Modular structure allows for future expansions without major modifications.

Future Trends in Low-Voltage Switchgear

As technology evolves, GCS Low-Voltage Switchgear is expected to incorporate:

Smart Monitoring – IoT-enabled sensors for real-time diagnostics.

Digitalization – Integration with SCADA and energy management systems.

Sustainability – Eco-friendly materials and energy-efficient designs.

Conclusion

GCS Low-Voltage Switchgear is a vital component in modern electrical systems, offering safety, reliability, and adaptability across diverse applications. Its modular design, compliance with international standards, and advanced protection features make it a preferred choice for industries worldwide. As power distribution demands grow, innovations in smart and sustainable switchgear will further enhance its role in the energy sector.

By understanding its design, applications, and benefits, engineers and facility managers can make informed decisions when selecting low-voltage switchgear solutions for their projects.
